Kitman Coupe Door Hinge Installation Guide
Installing doors correctly is one of the most important steps when building a Kitman Coupe. Proper hinge placement ensures good door gaps, smooth operation, and long-term durability.
This guide provides a clear, step-by-step process for mounting the door hinges on the Kitman Coupe kit. It is written for builders using the official Kitman tube chassis or Kitman subframe, but can also be used as a reference for custom-built frames.
The system uses 3D printed templates and a combination of fixed mounting on the body and slotted mounting on the door, giving you good adjustability for a proper fit.
Recommended Hardware: Use .75" diameter aluminum spacers in lengths ranging from .5" to 1" to fine-tune the door’s in/out position.
Tools & Materials Needed
- 3D printed body-side template
- 3D printed door-side template
- 1/4" drill bit + drill
- Hole saw (if needed)
- Rivnuts + installation tool
- .75" diameter aluminum spacers (.5" – 1" lengths)
- Backing plates or large washers
- Clamps and marker
Phase 1: Body Side Hinge Installation

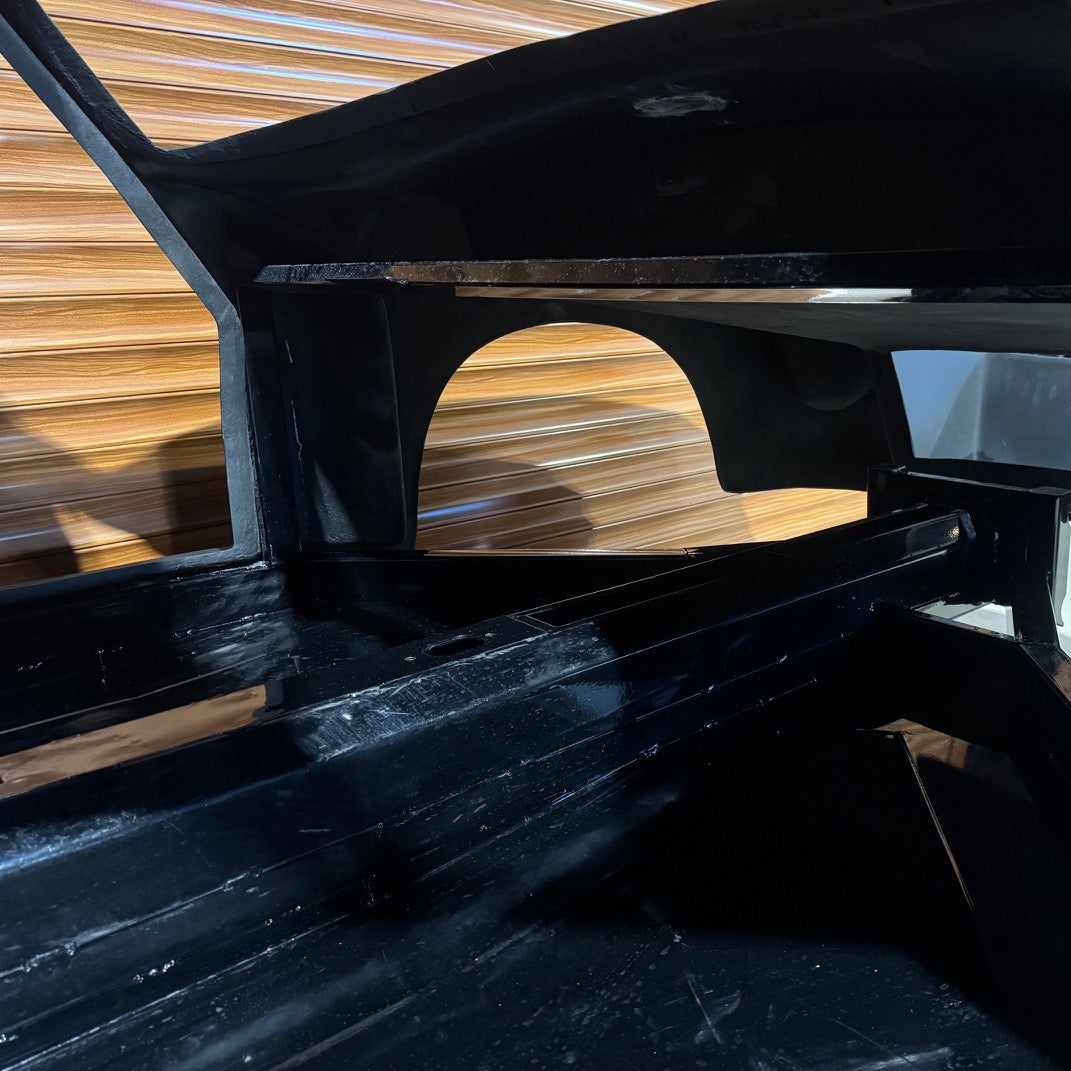

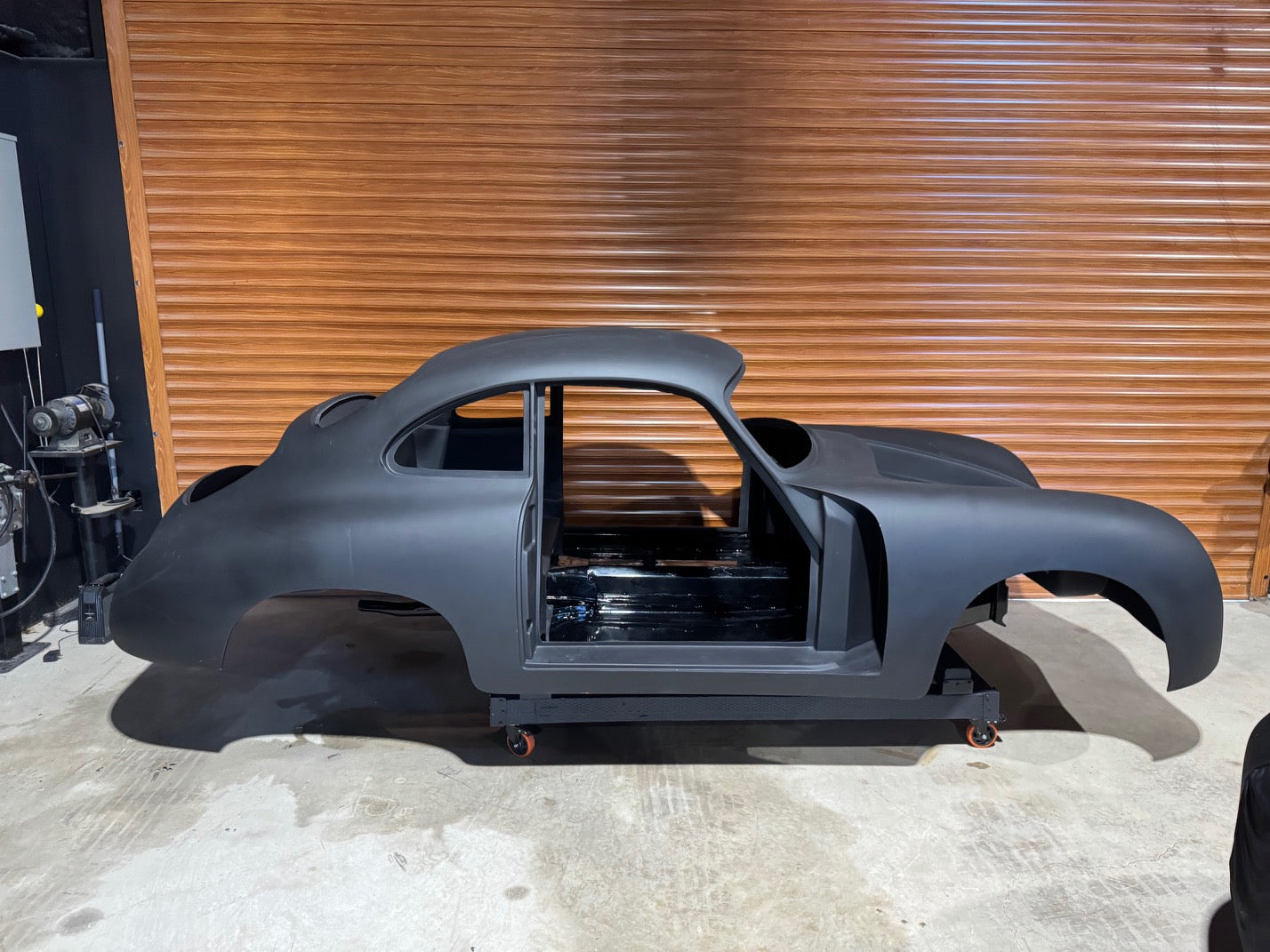

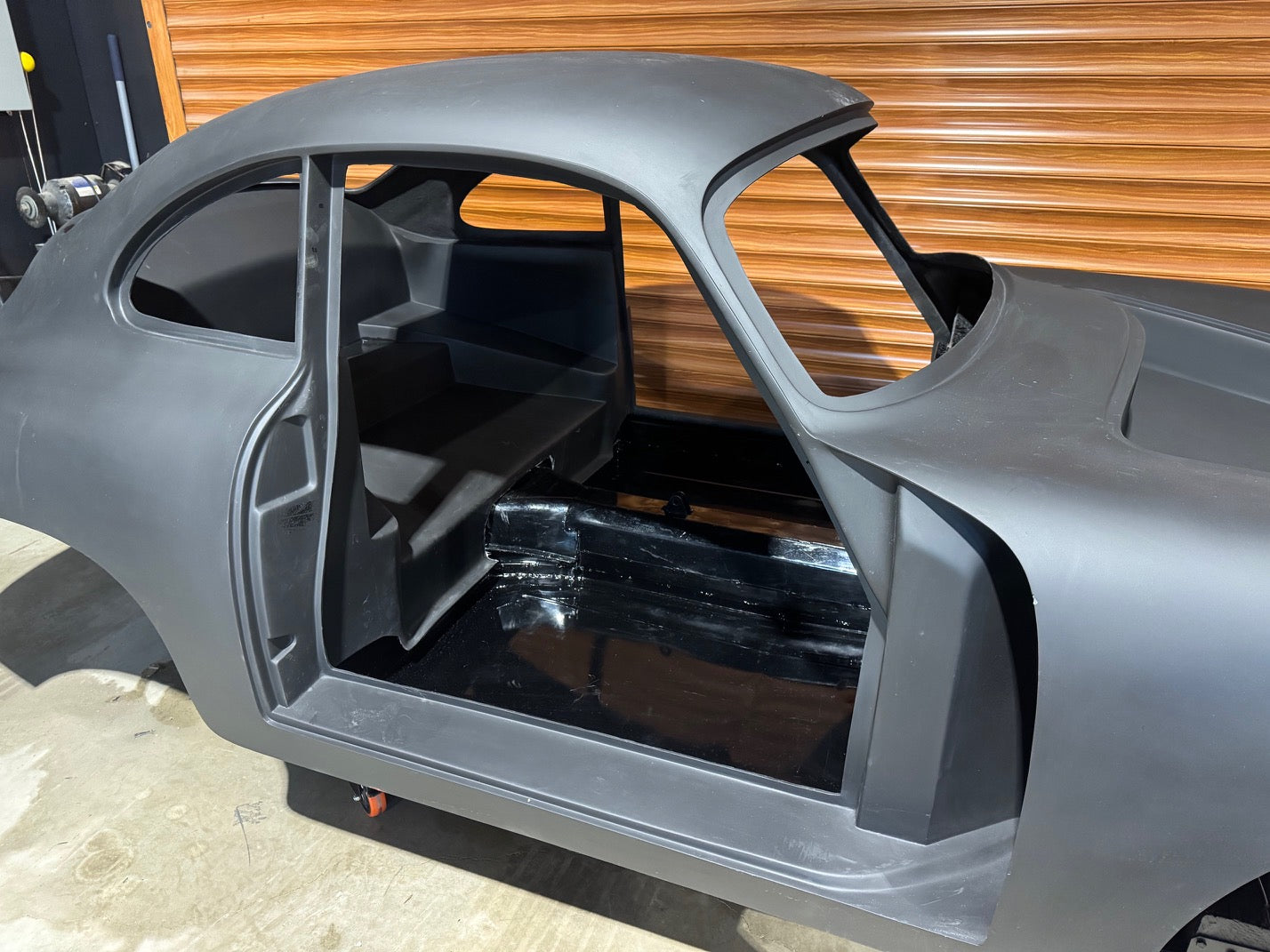

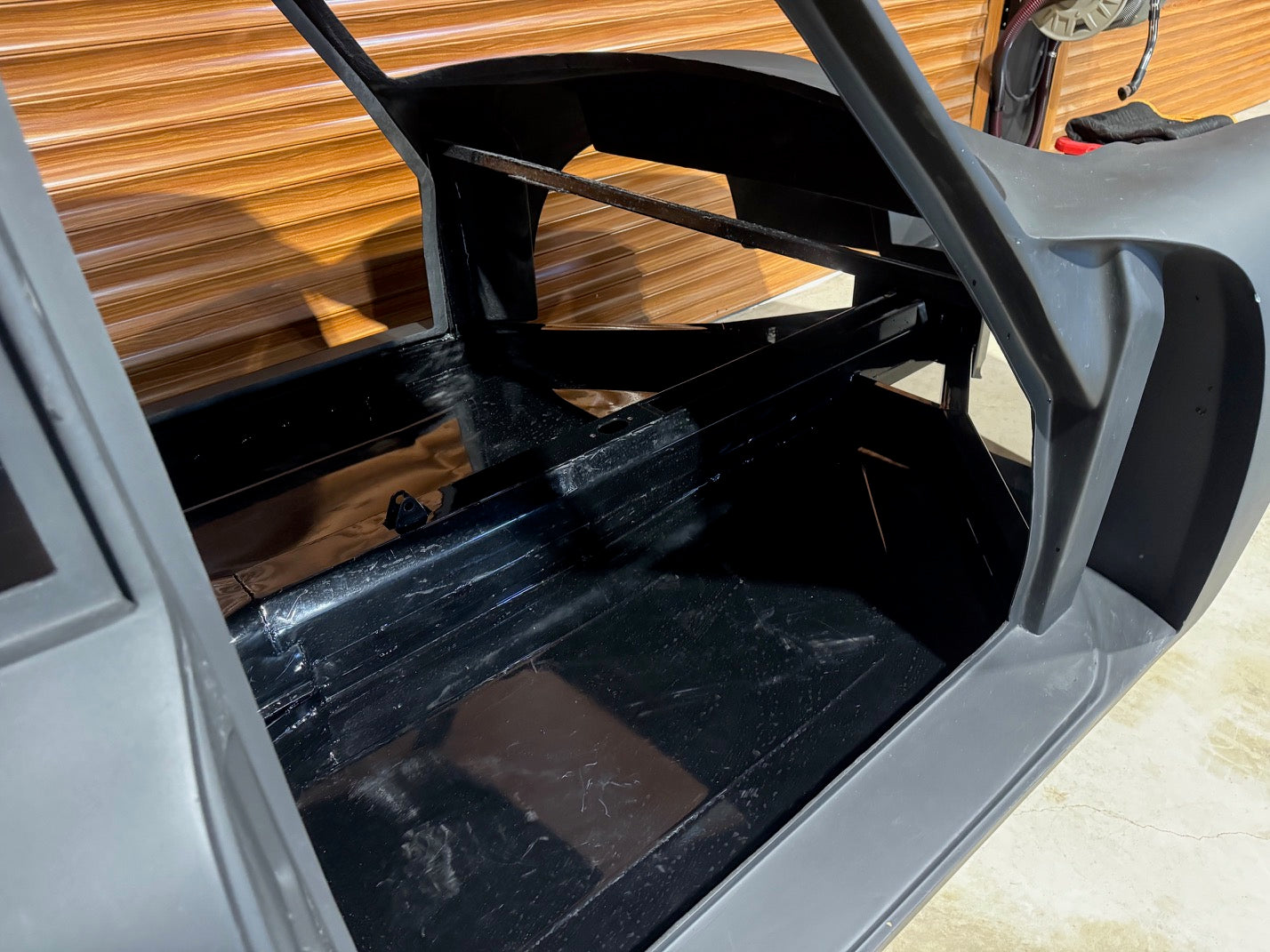

Support both the front and rear sections of the body so it sits evenly on the door sill frames. Bolt the body into a fixed position.

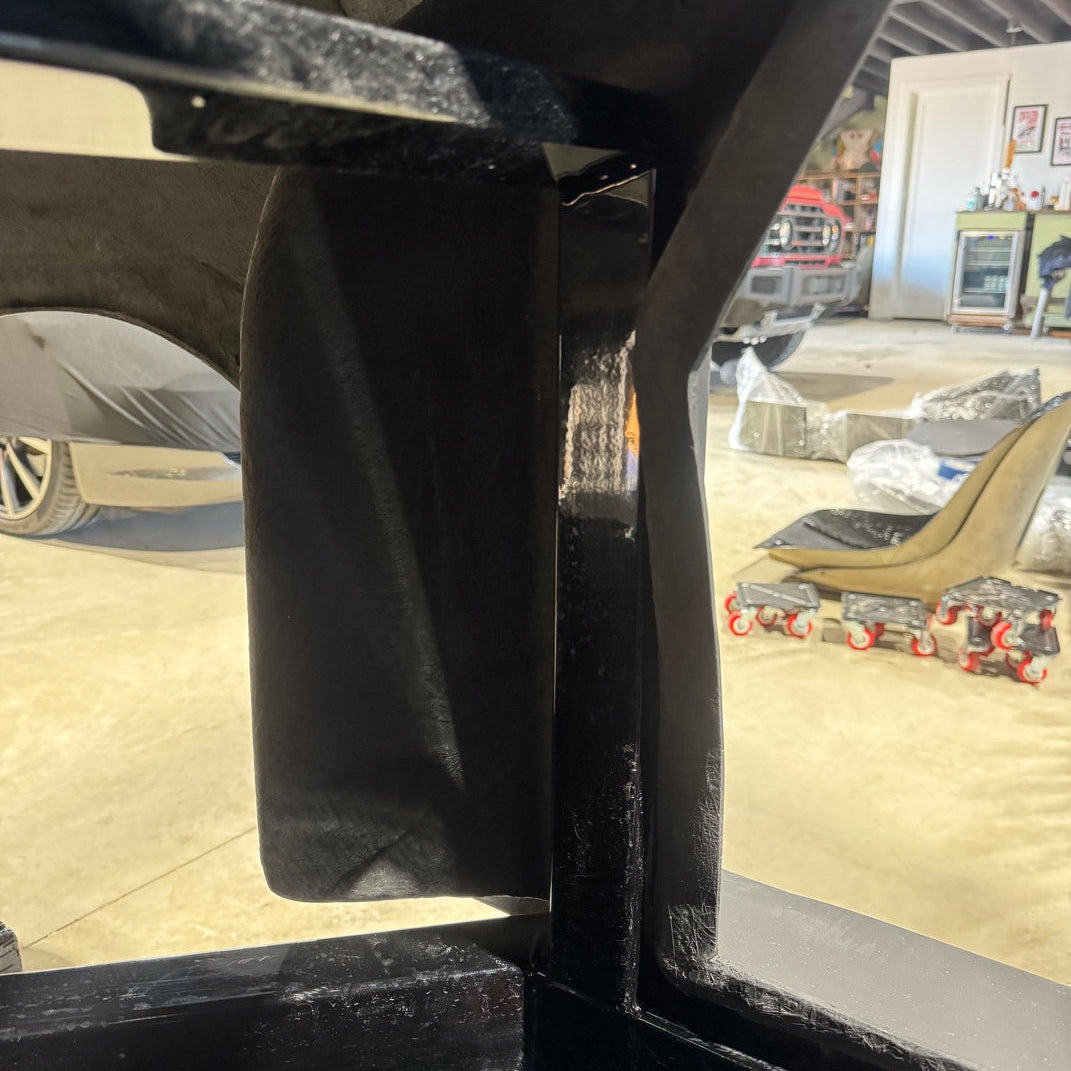

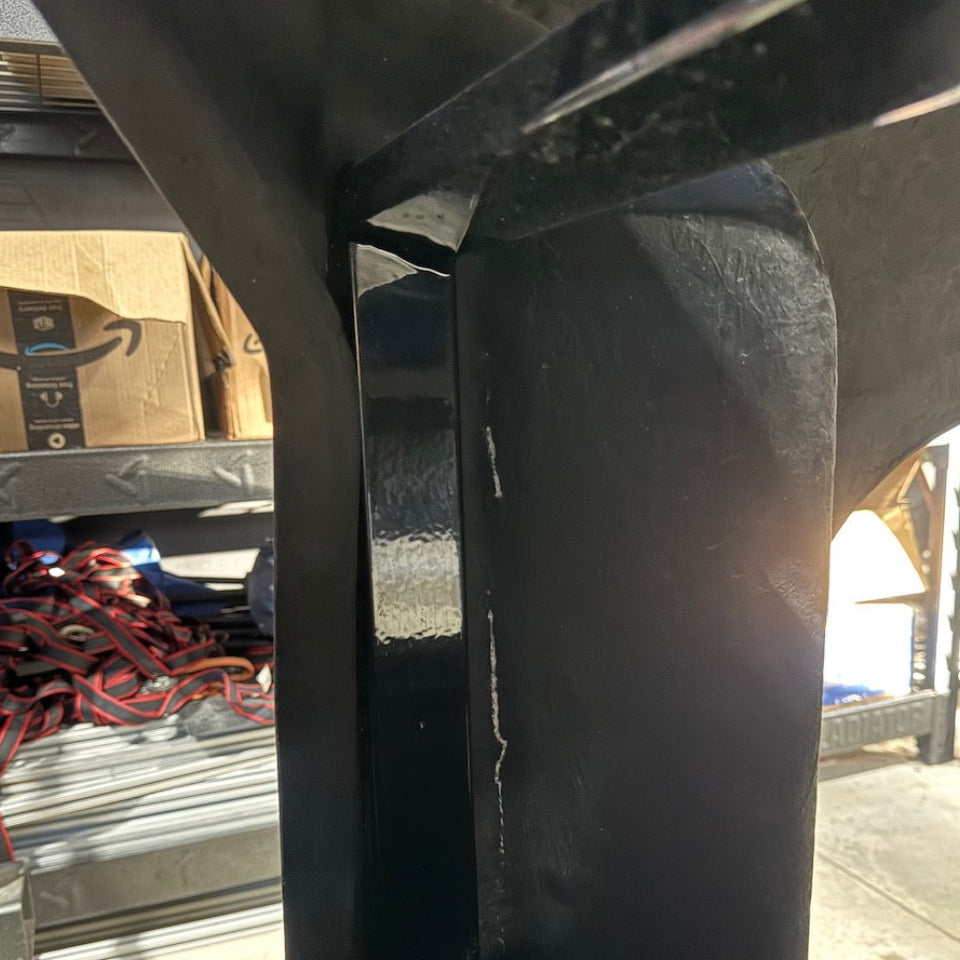

Check that the A-pillar chassis post is clamped tightly against the body with no gap on the inside surface.

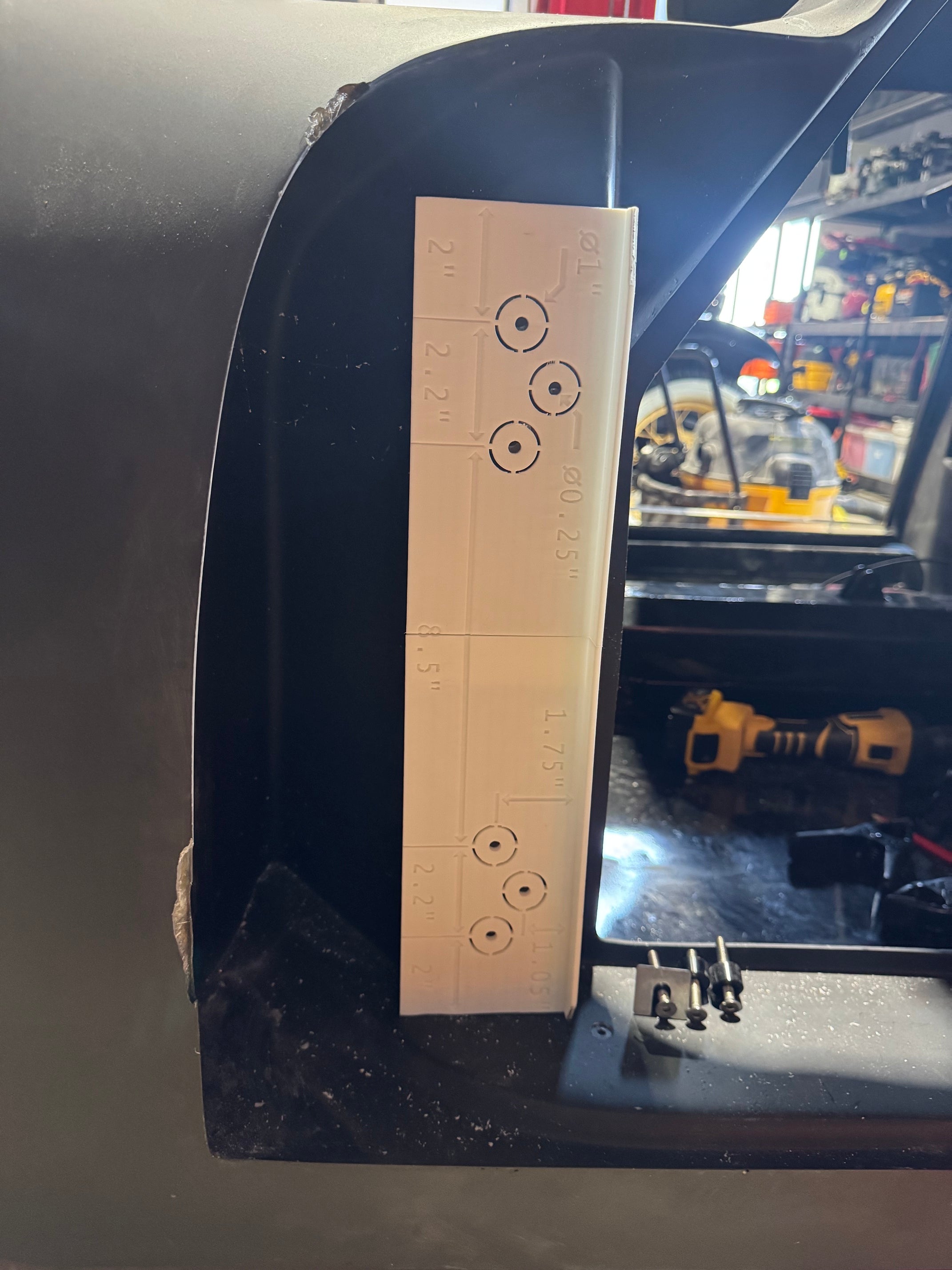

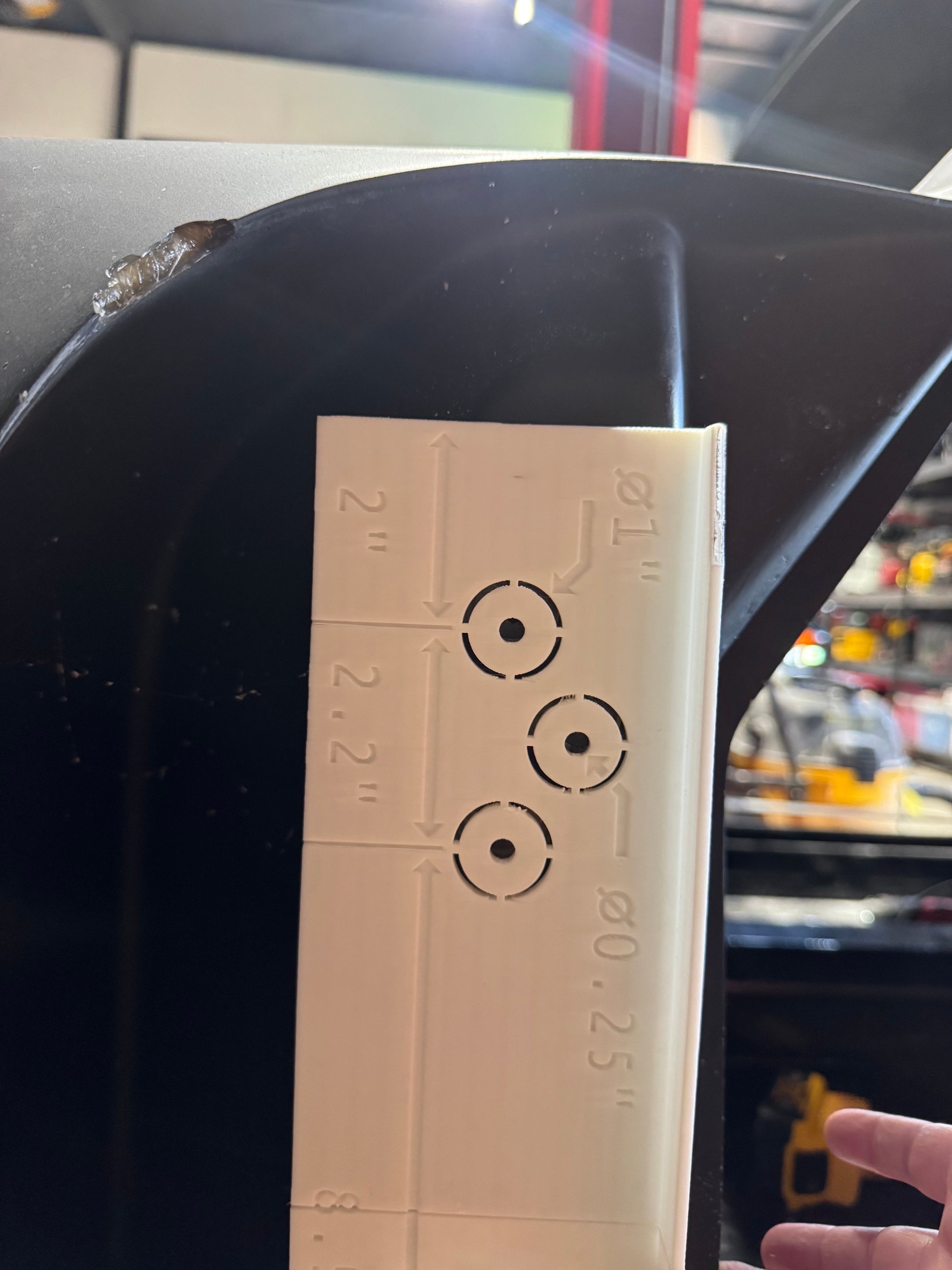

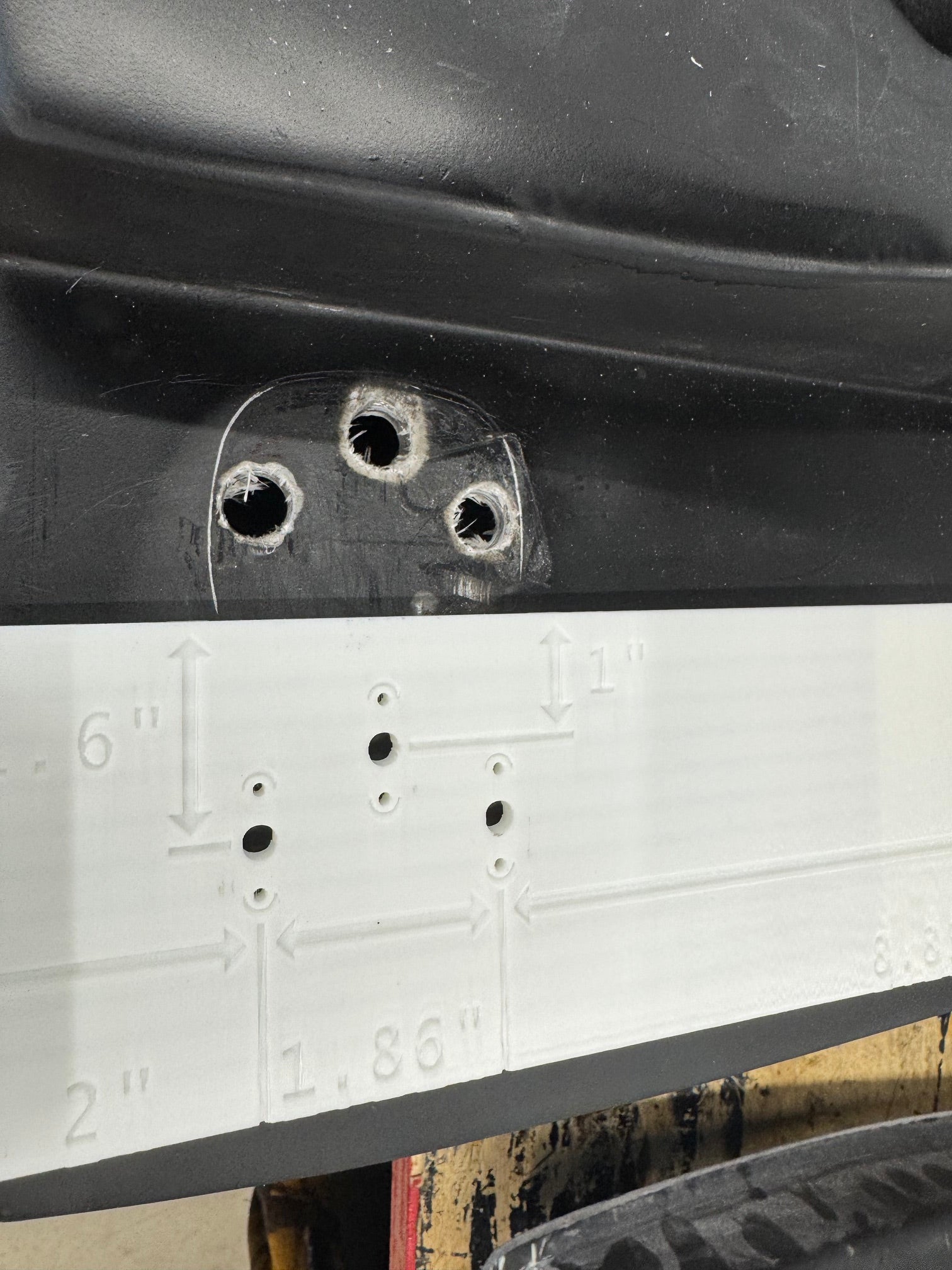

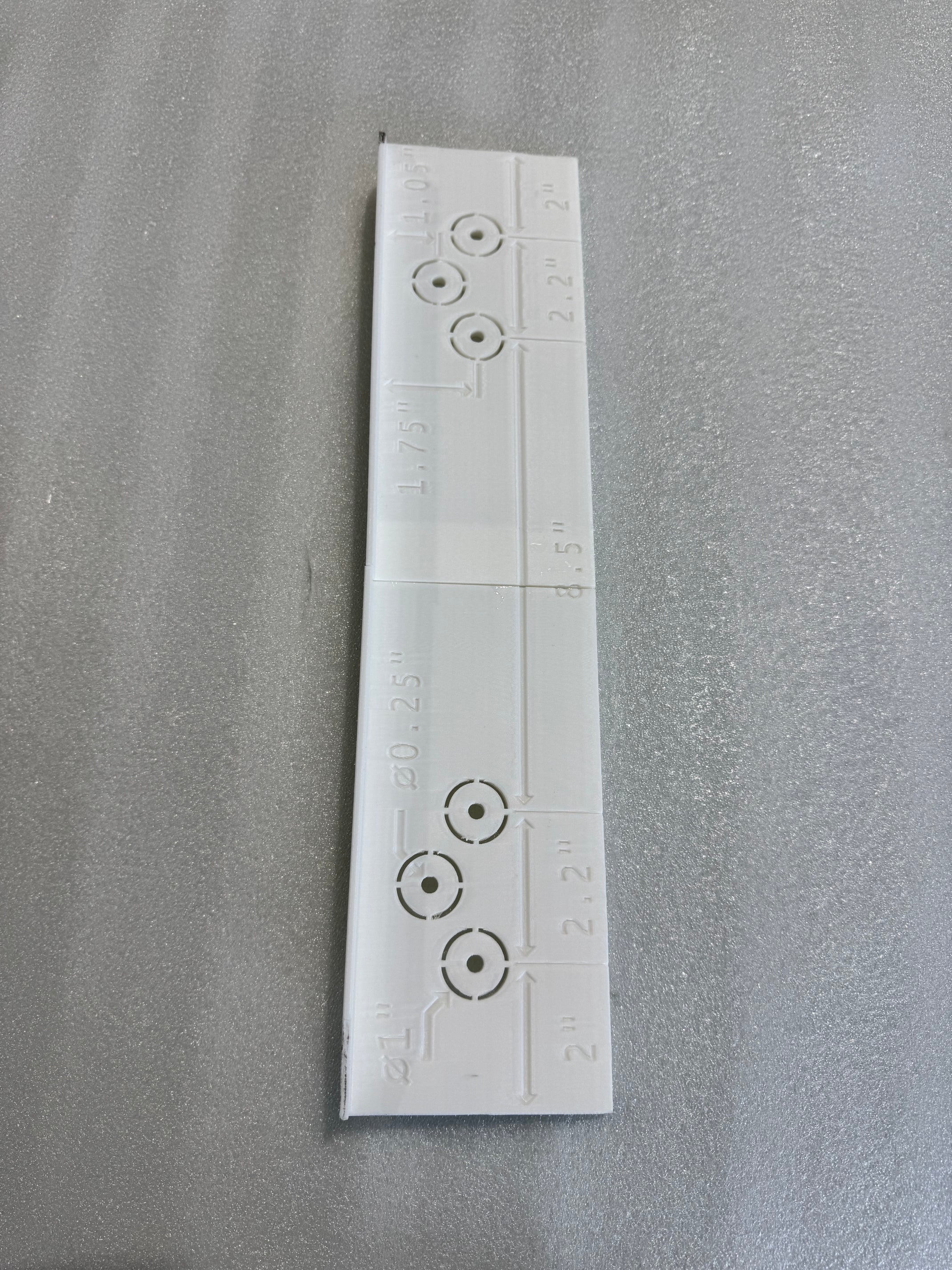

Use the body-side and door-side 3D printed templates to mark all hinge mounting hole locations.

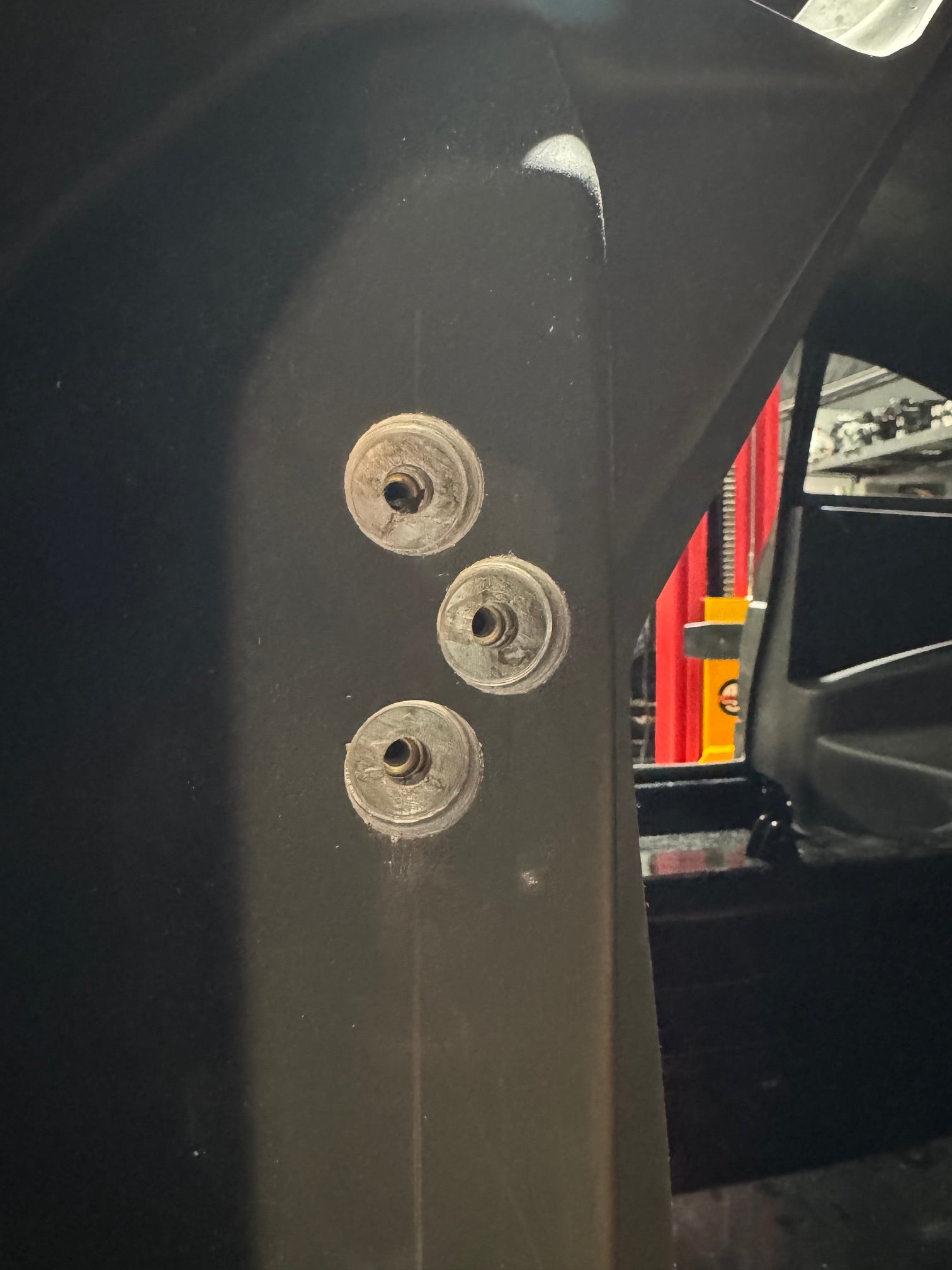

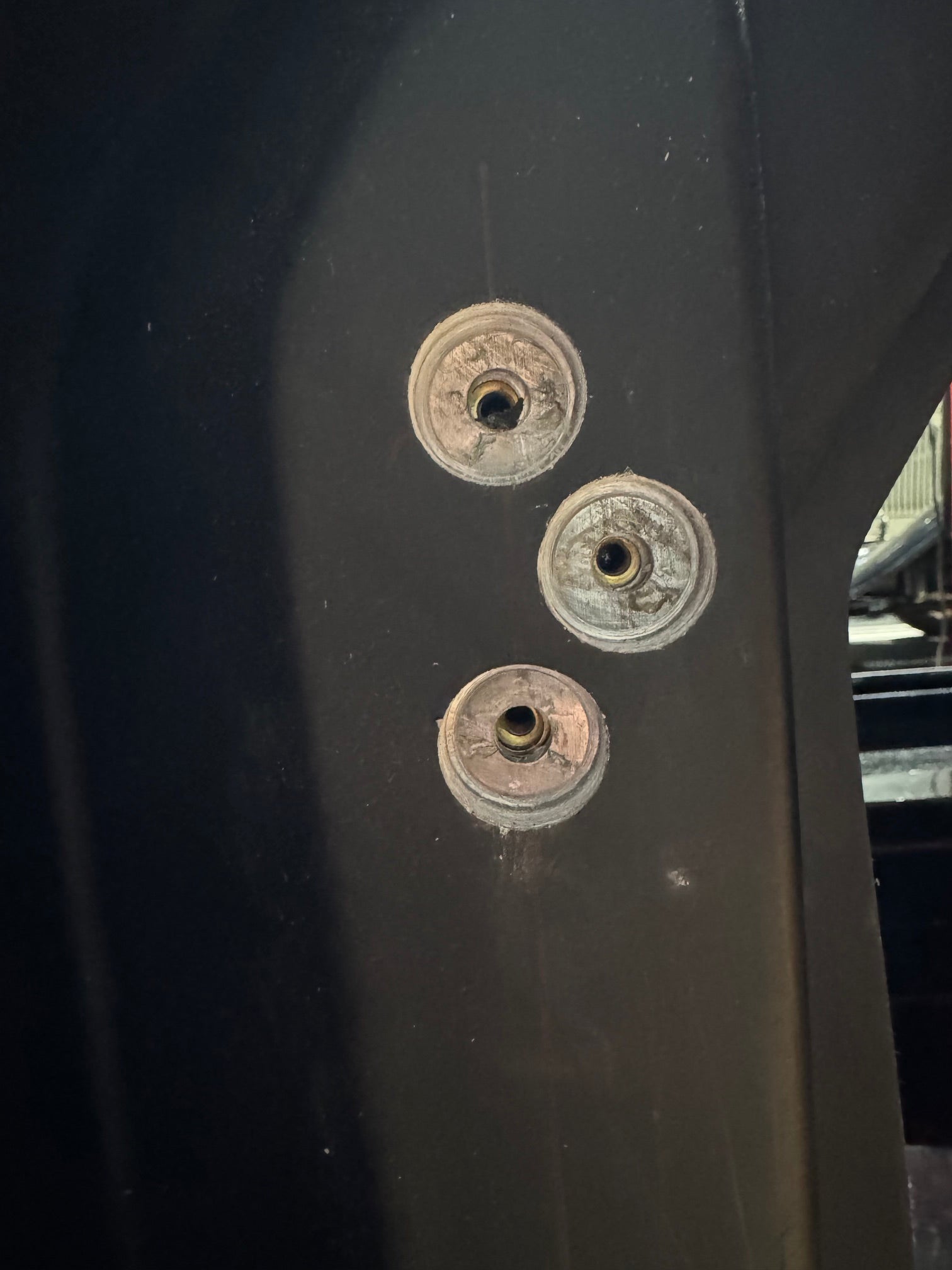

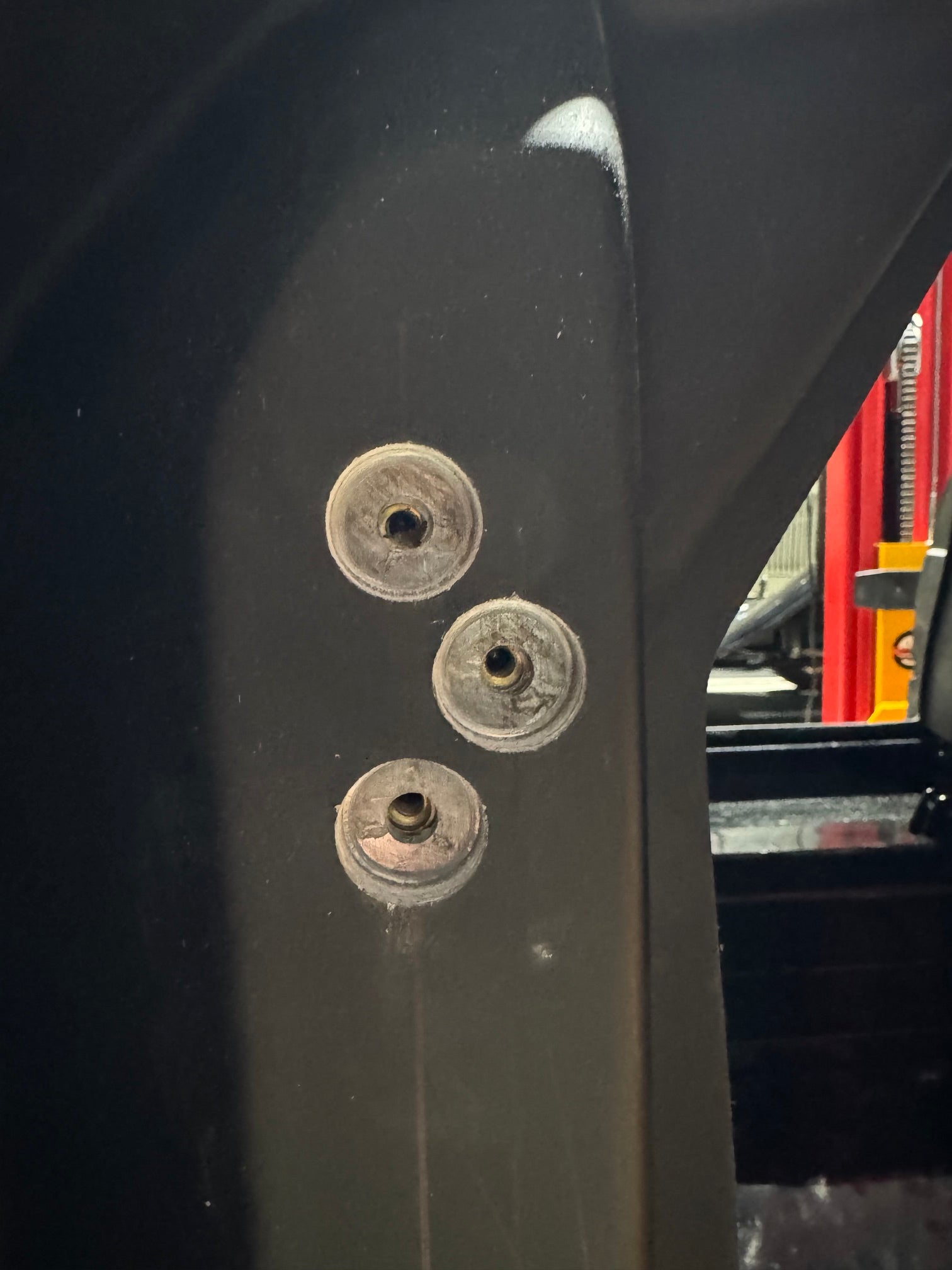

Drill pilot holes using a 1/4" drill bit. Remove the body from the frame. Install rivnuts into the frame, especially on the A-pillar. Drill clearance holes in the body. If needed, use a hole saw to remove fiberglass on the outer side of the pillar for proper bolt clearance.

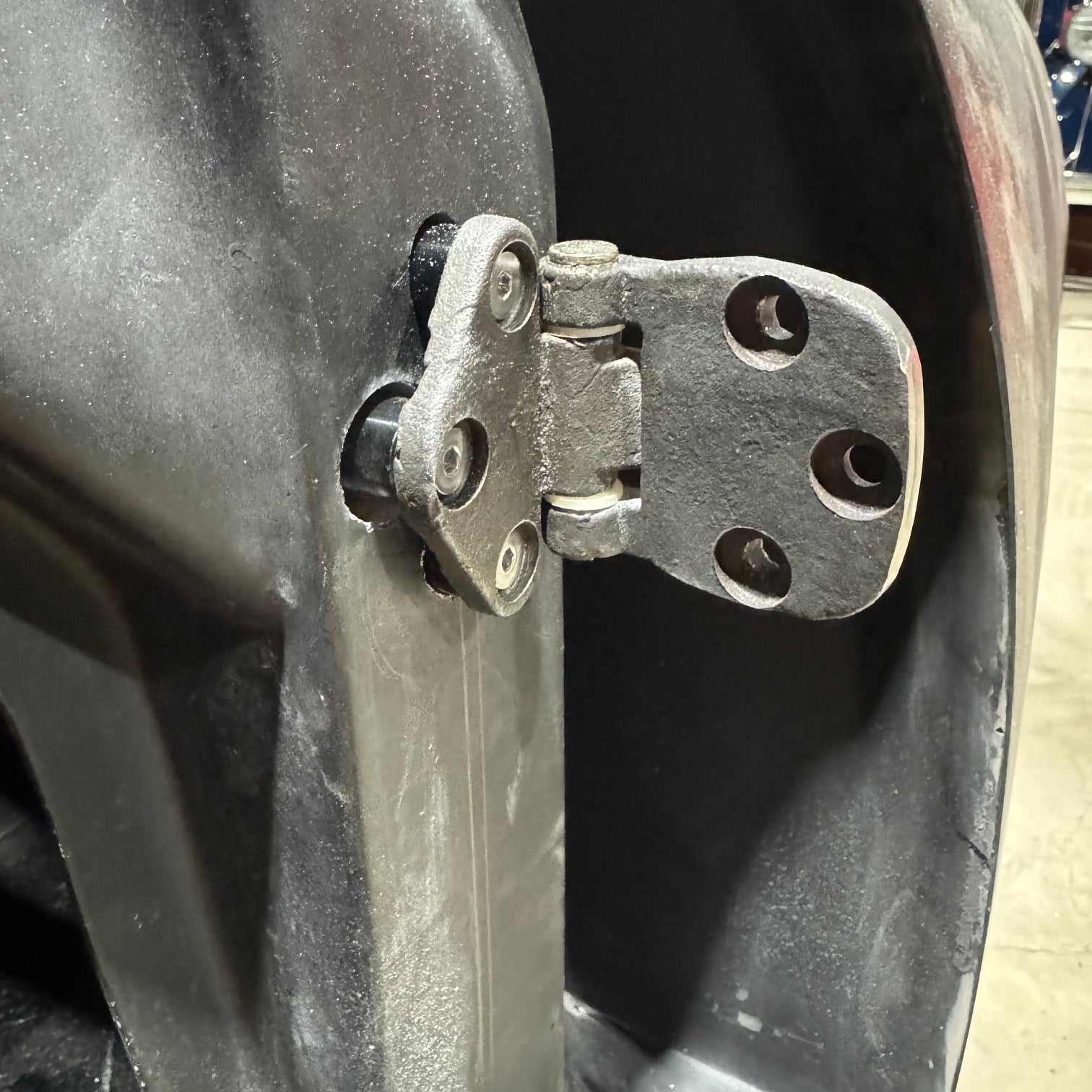

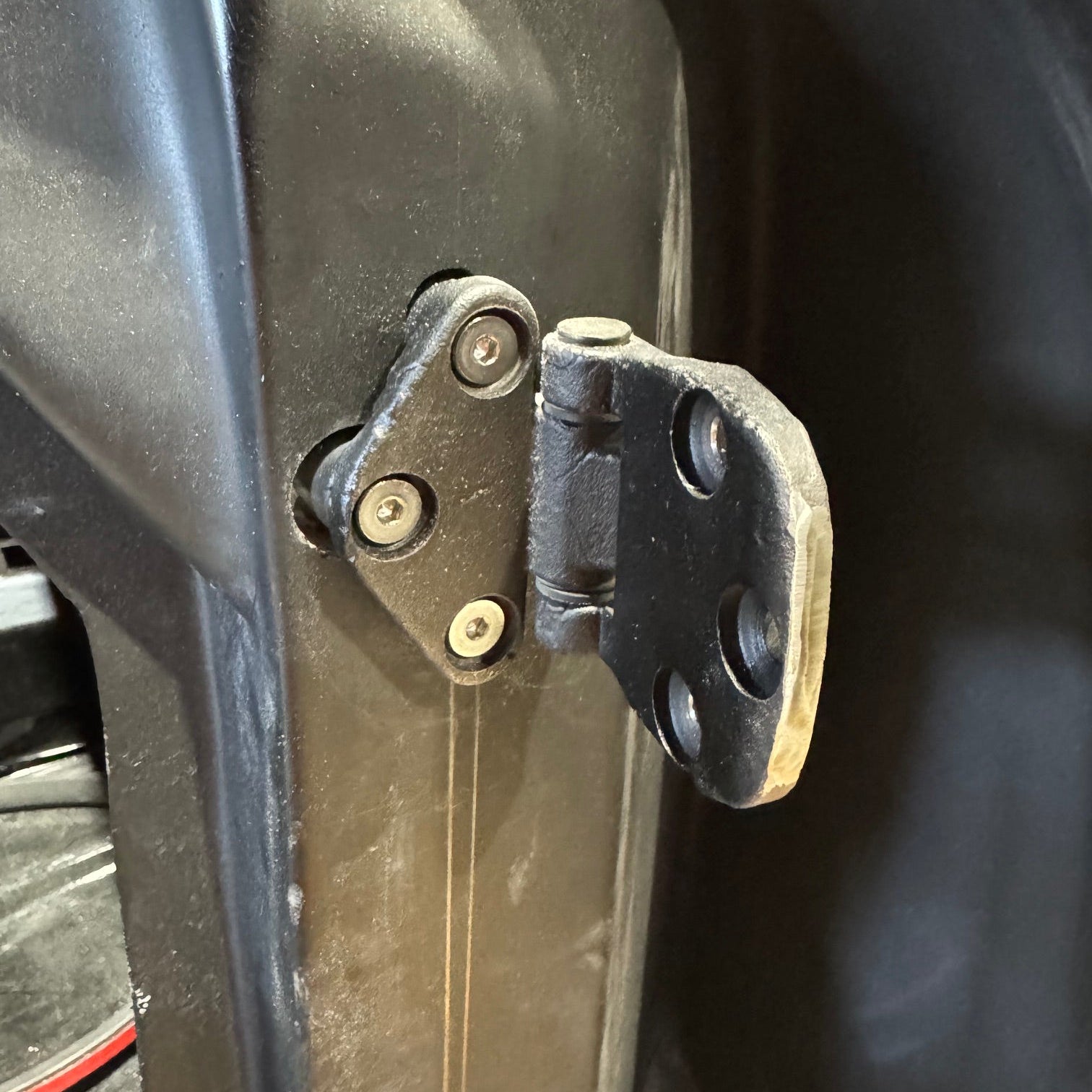

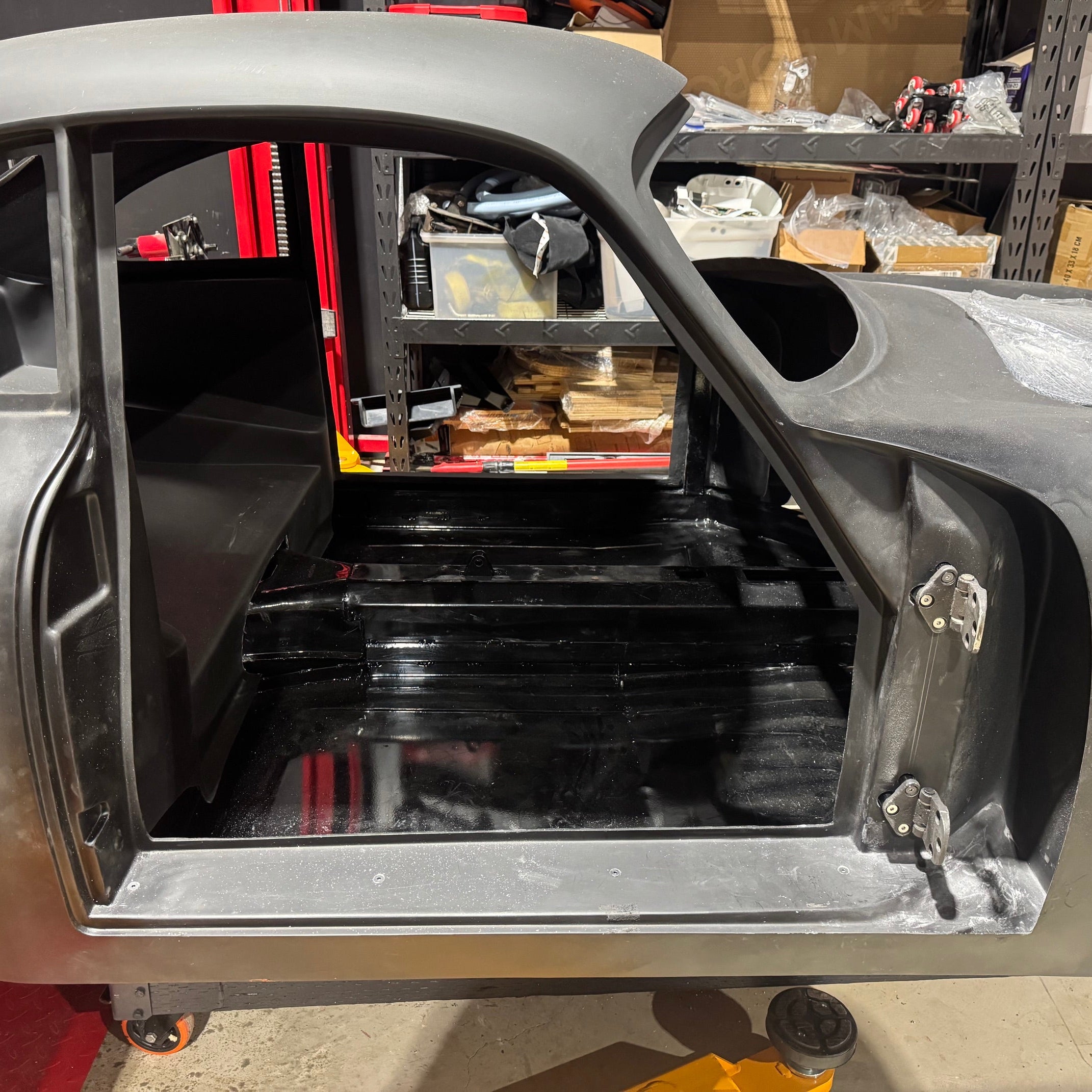

Use .75" aluminum spacers to adjust the hinge position. Reinstall the body onto the frame and mount the hinges to the body side (fixed position). Adjust the door’s in/out position using spacers behind the hinge.
Phase 2: Door Side Hinge Installation

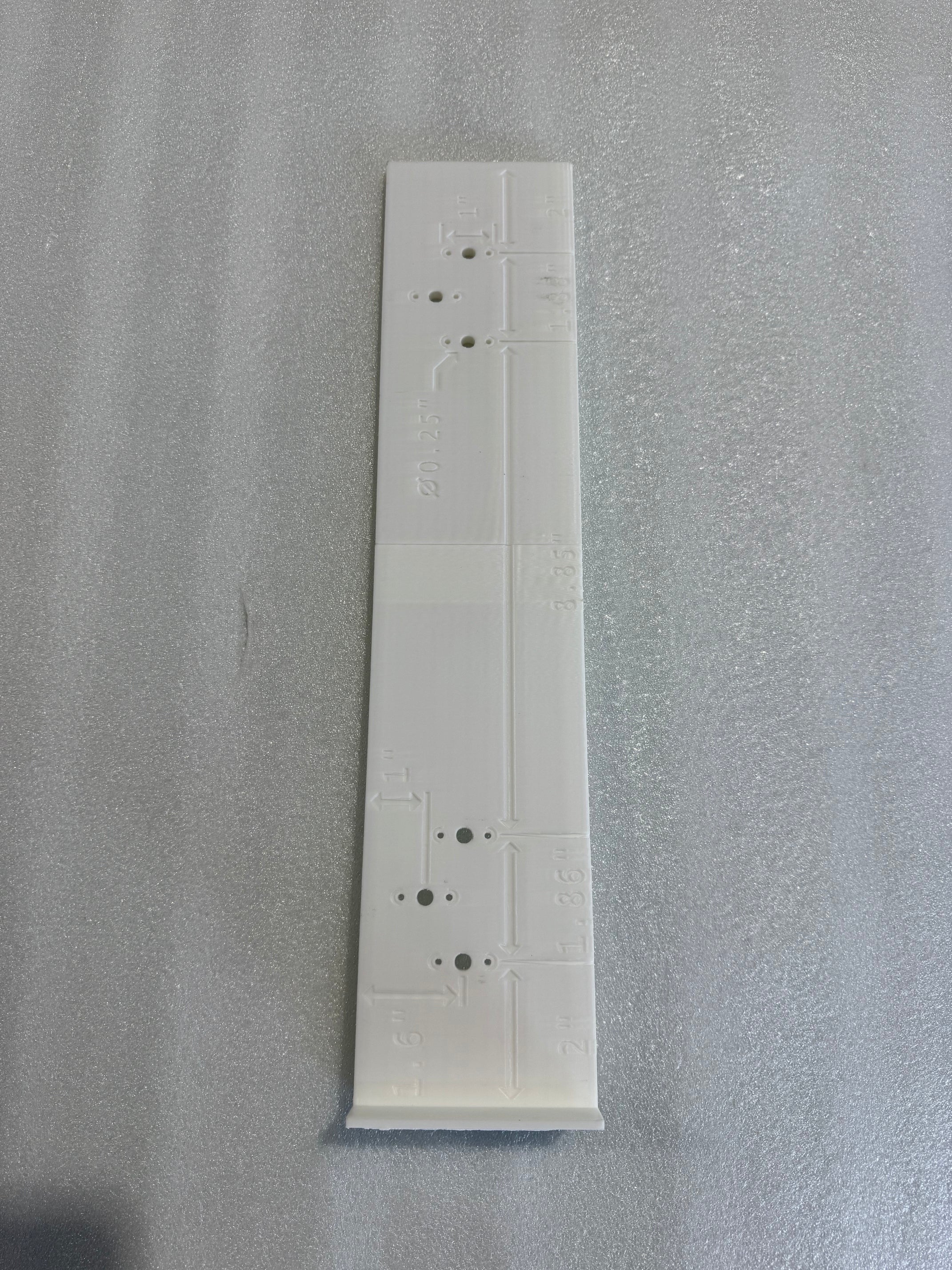

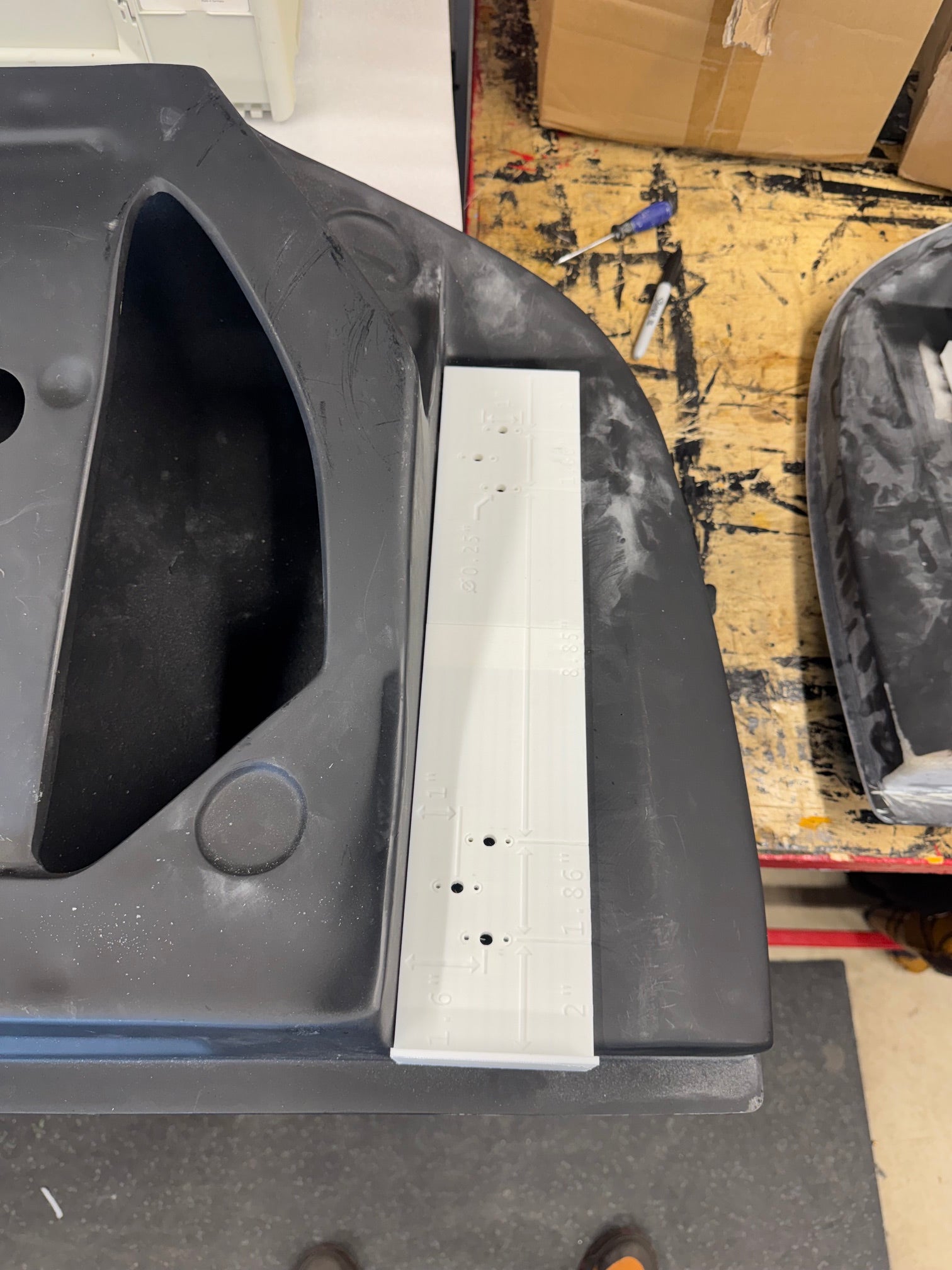

Use the door-side template to mark hole centers. Open the holes into slots to allow approximately 0.5" of forward/backward movement.

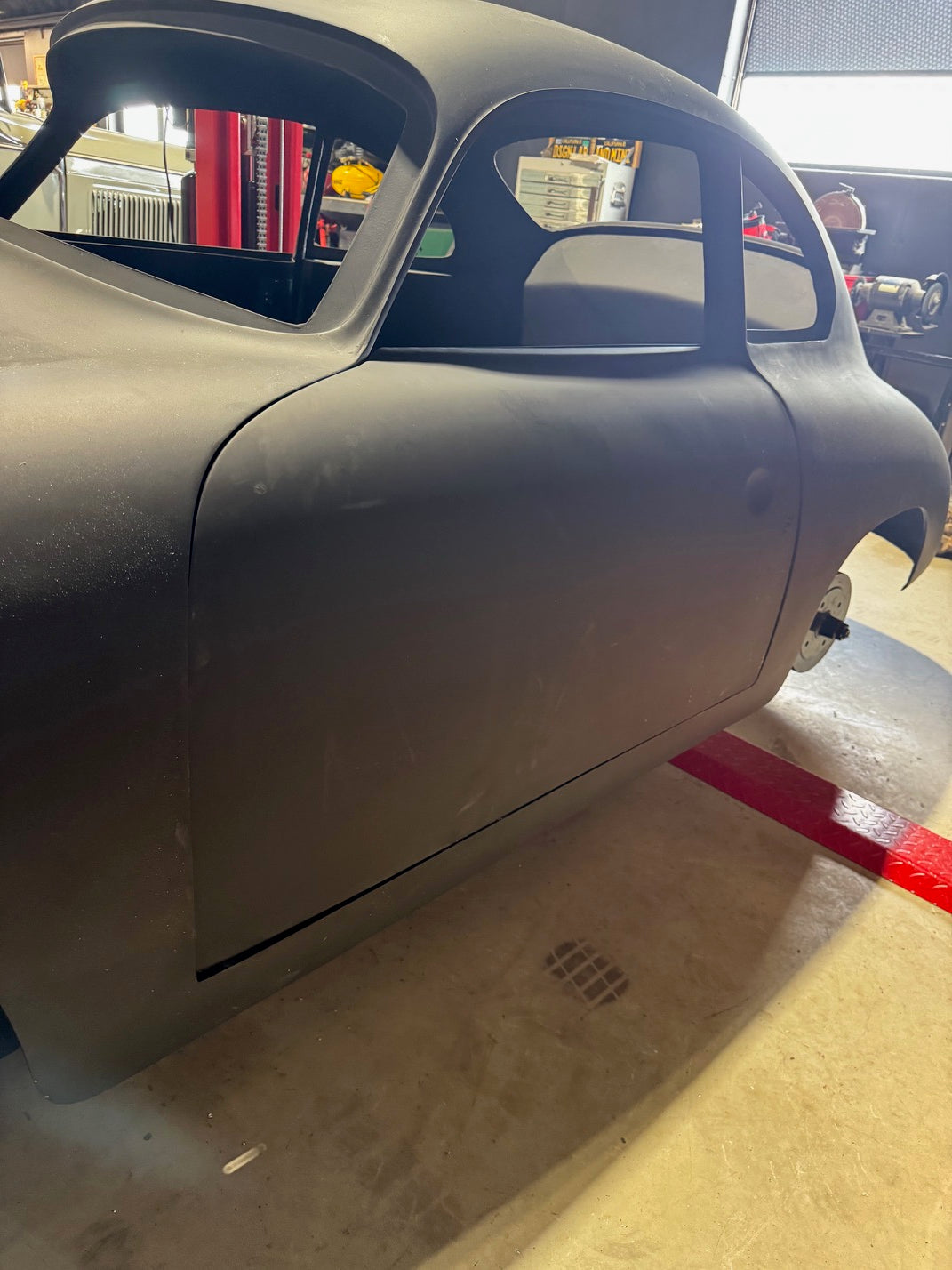

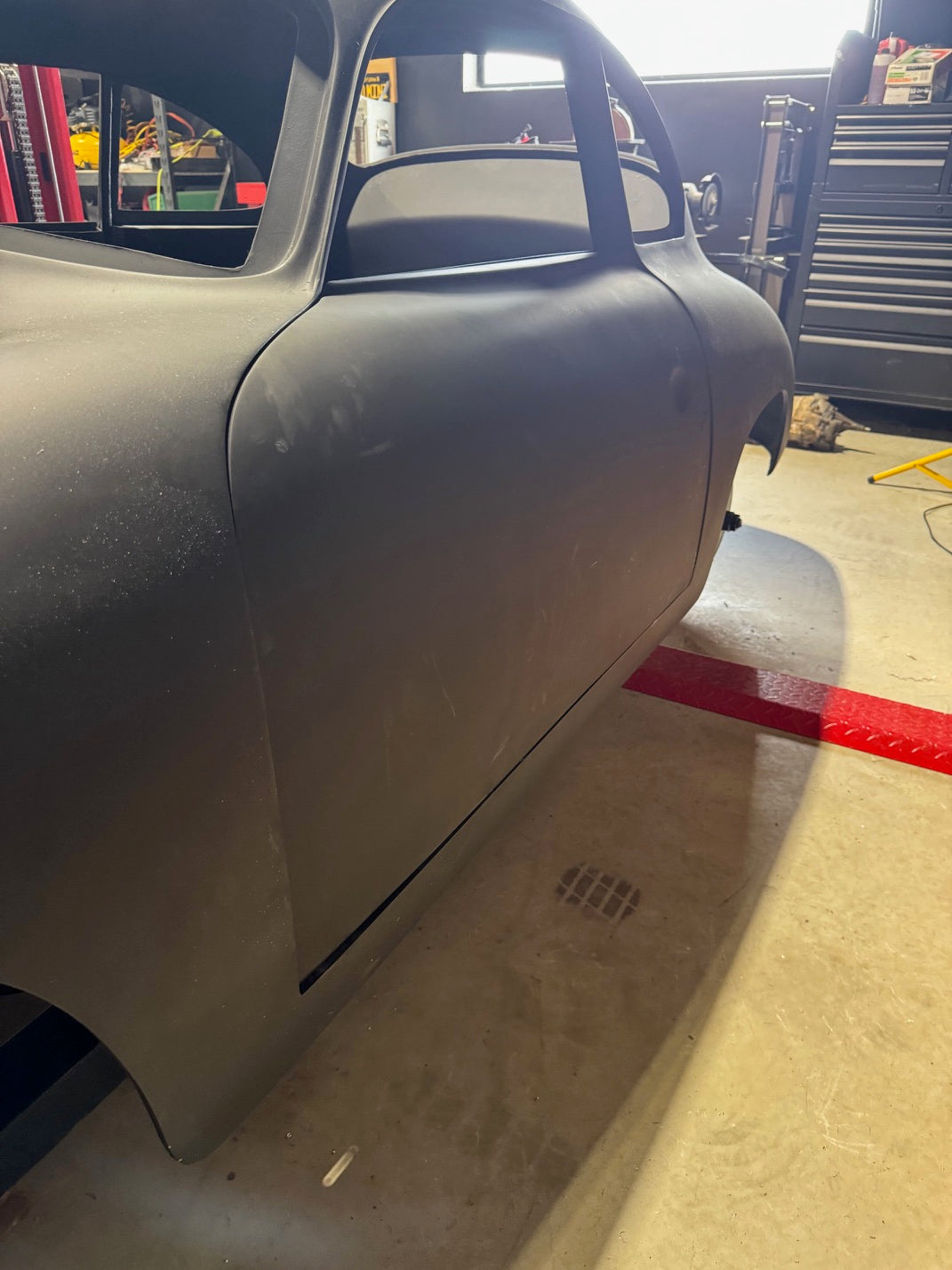

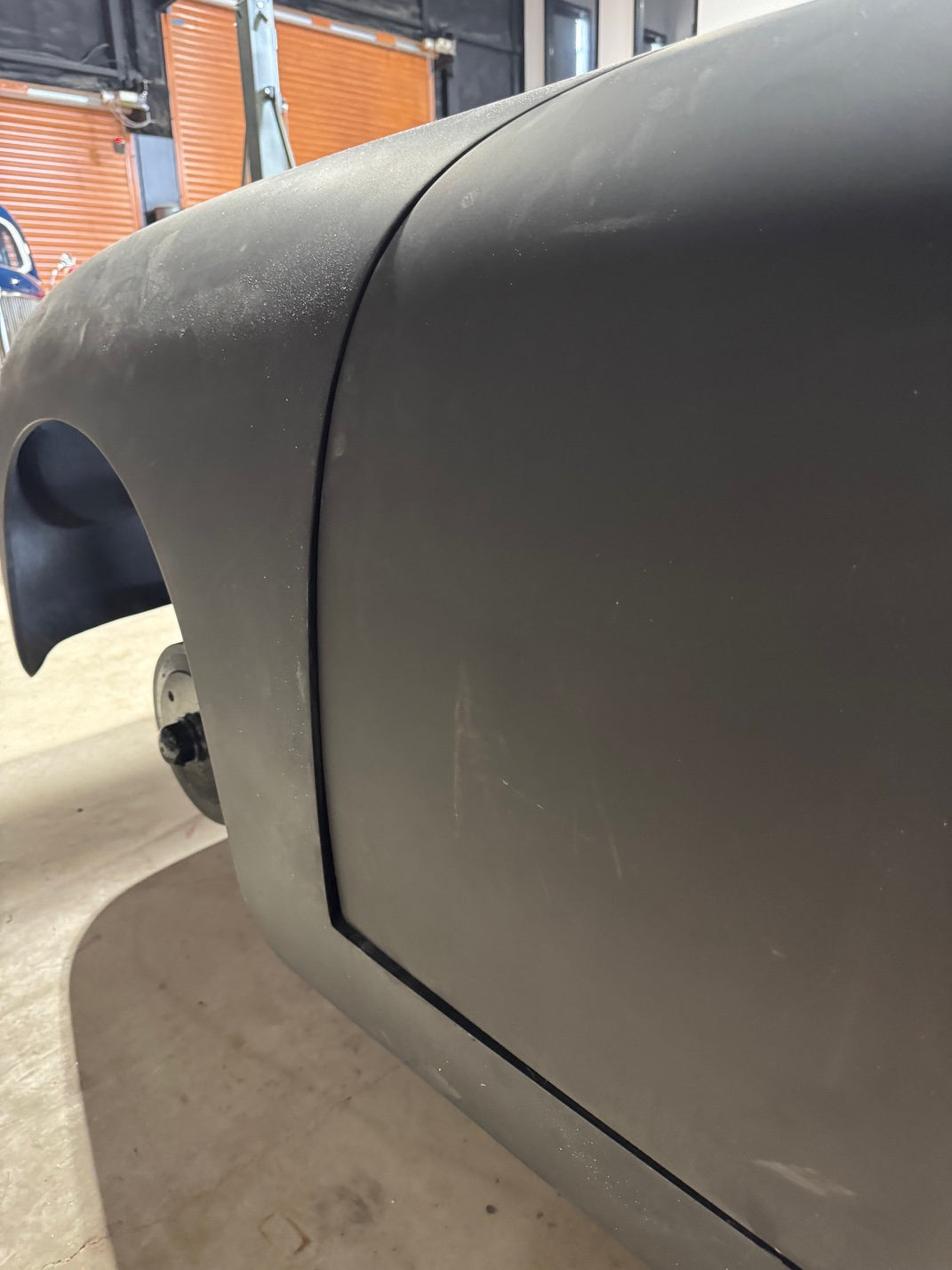

Hang the door on the hinges and check the fit. Adjust the slotted holes to set proper door gaps. Use body-side spacers for in/out adjustment.
Final Notes
- Use backing plates or large washers on the door side to spread the load.
- Once final fit is confirmed, backing plates can be bonded in place.
- Doors are typically slightly oversized and will require trimming.
- In some cases, material may need to be added to correct gaps.
